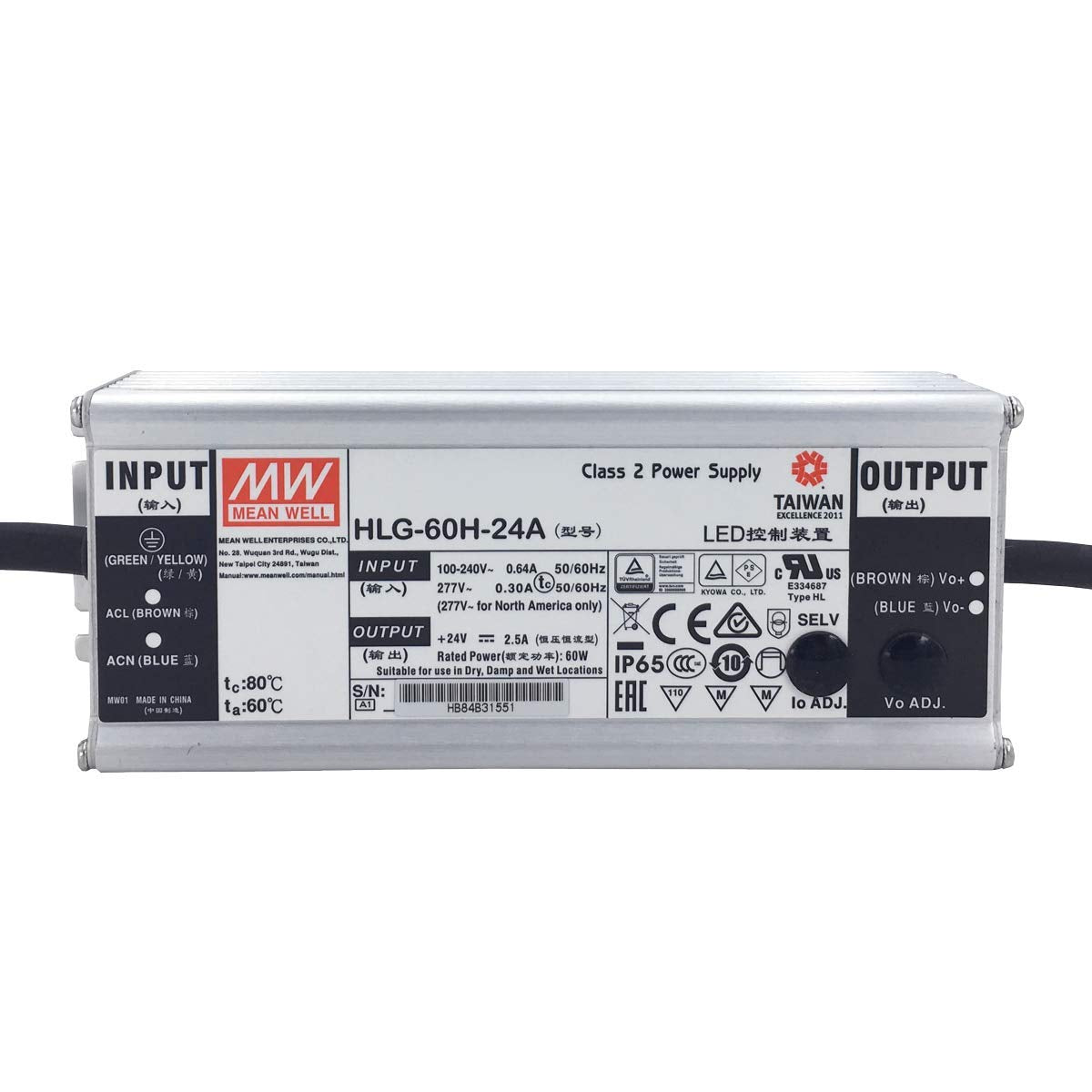

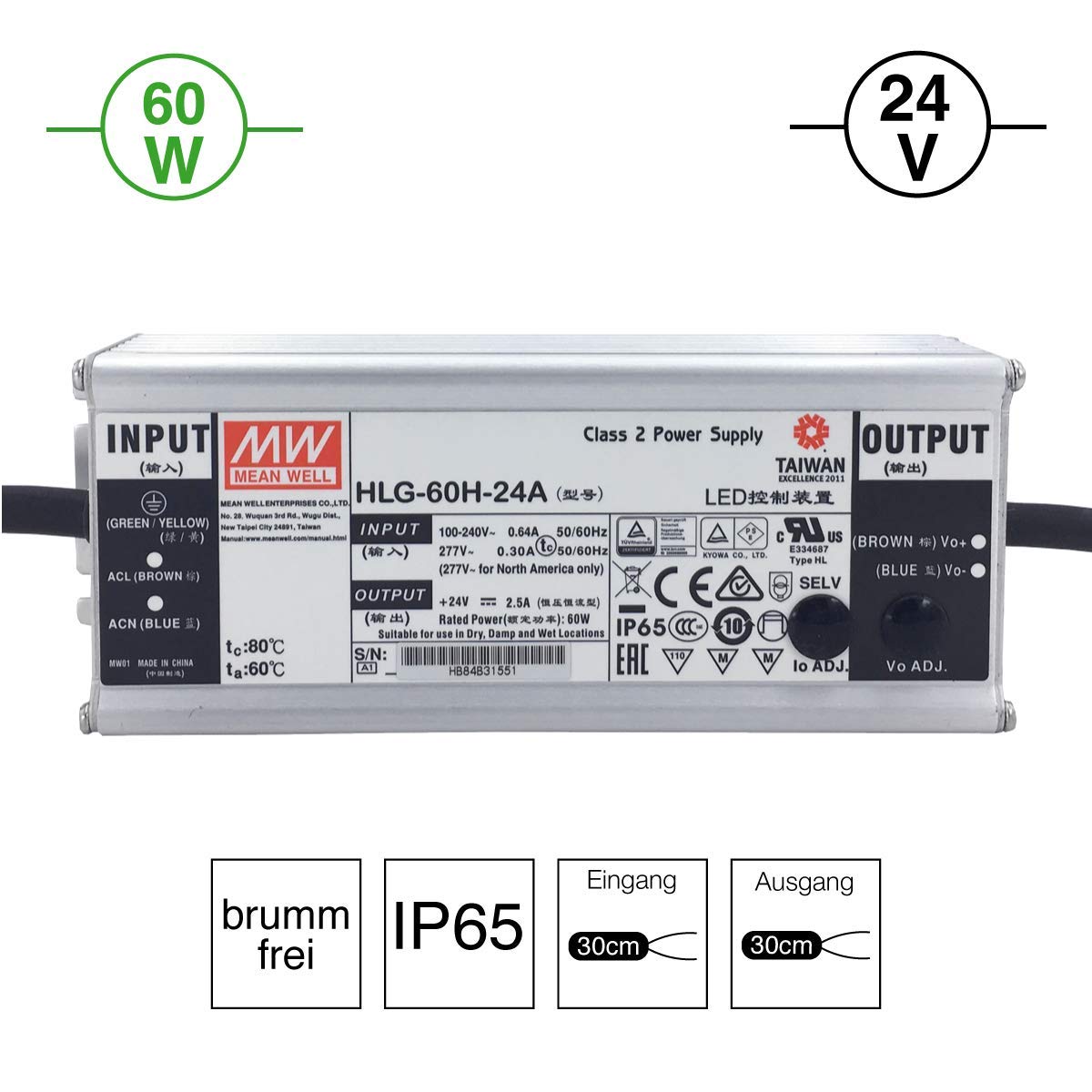

HLG-60H-24A: Mean Well LED power supply 60 W, 24 V, IP65, voltage and current adjustable (24 V, 60 W)

Features

• High quality: efficient and durable LED power supply from MeanWell made of aluminium with 24 V/60 W (constant voltage). Three approx. 30 cm long connection cable without plug are firmly mounted.
• Adjustable: thanks to the built-in regulator, voltage or constant current can be individually adjusted. For example, this makes sense to compensate for a loss of voltage due to long cable paths.
• Protection functions: with protection functions against overload, too high input voltage, overtemperature and short circuit. Ideal for LED installations such as LED strips with 24 V and LED recessed spotlights (LED spots) with 24 V.
• Waterproof: splash-proof IP65.
• INCONNECTED LIGHT CONSUMPTION: Are you planning a light installation Please contact us and take our advice offer by email or phone (0049 2835 782 37 - 00, Mon-Fri 9 - 5 pm) Please feel free to send us sketches or floor plan of your planning.

Product Description

Technical data: Below are the most important technical data, more information about this Mean Well power supply is available on our iluminize website. Dimensions: Length: 171 mm. Width: 61.5 mm. Height: 37 mm. Weight: 0.73 kg Performance data: Input voltage: 176V-264V AC. Inrush current: 30 A / 230 V. Power: 60 W. Voltage: 24 V. Maximum current: 2.5 A. Efficiency: 89.5% Residual ripple: 150mV Voltage stability: ±0.5%. Load stability: ±0.5%. Insulation voltage: 1.5 kV AC. Insulation resistance: 500 V DC / 100 MΩ. Overload: 105% ~ 150% (auto reset) Over voltage: 121%~142%. Short circuit: auto reset. Humidity: 10% to 95%. Working temperature: -10°C to 50°C. The connection cables are 30 cm long. Need advice Are you planning an installation and need larger quantities in different lengths or with longer cables Please contact us and use our non-binding advice by email or phone (+49 2835 782 37 - 00). You can also send us sketches or basic plans of your planning.
