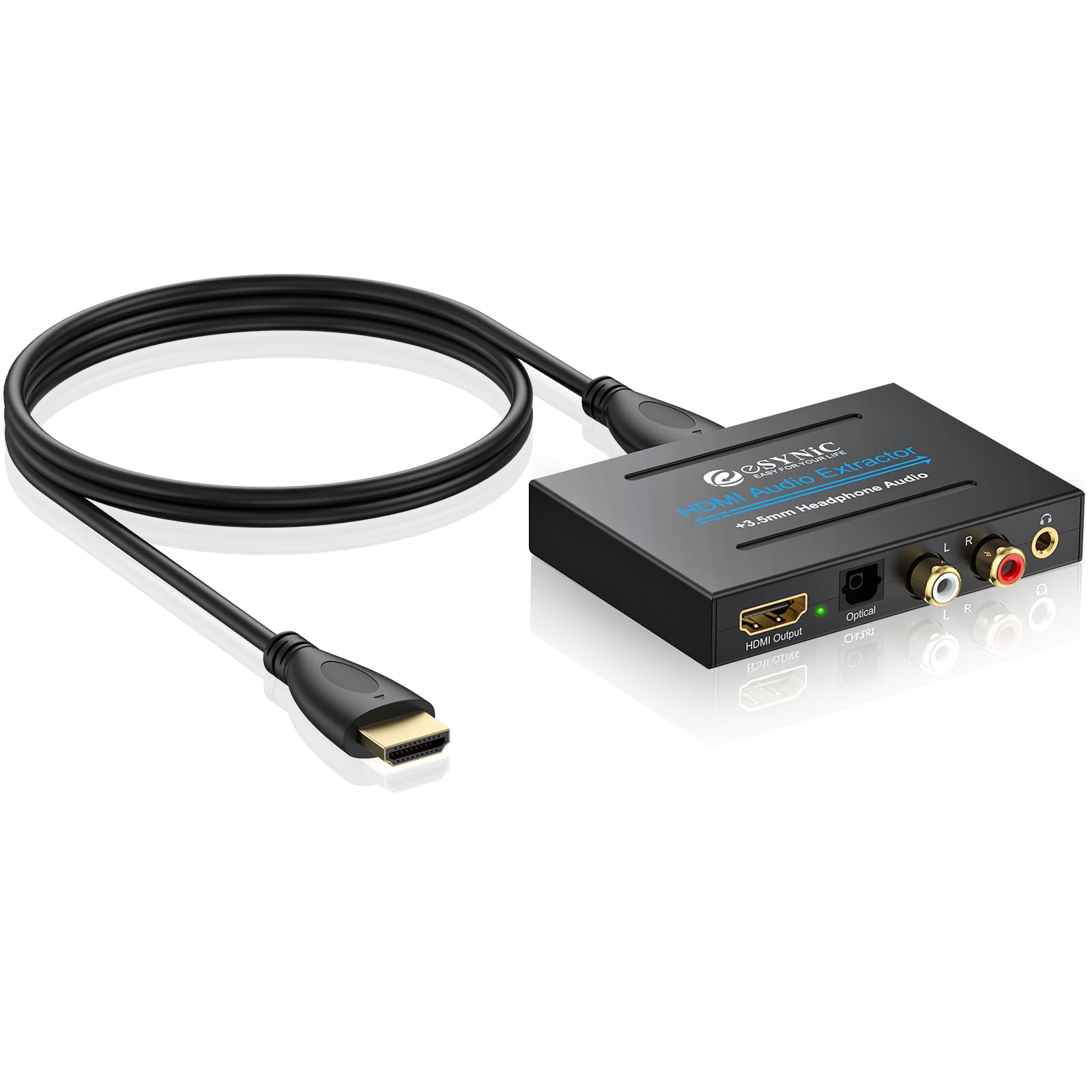

eSynic Professional HDMI Audio Extractor 4K HDMI Optical Adapter Audio Splitter with SPDIF,L/R and 3.5mm Output for PCM2.0,Dolby, DTS5.1 for Firestick

Specification: HDMI resolution : 24/50/60fs/1080p/1080i/720p/ 576p/576i/480p/480i Support video color format : 24bit deep color 30bit,36bit Audio output : L/R+SPDIF Max bandwidth : 225MHz Max baud rate : 6.75Gbps Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL) Input/Output DDC signal : 5Volts p-p(TTL) Input cable distance : Output cable distance : Max working current : 500mA Power adapter format : Input:AC(50/60Hz)100V-240V; Output:DC5V/1A Operating Temperature range : (-15 to +55??C) Operating Humidity Range : 5 to 90%RH(No Condensation) Dimension(LXWXH) : 84.5X61.8X21(mm) Weight : 135g How to Use: 1. HD Source connects to the input HDMI port. 2. HD Display connects to the output HDMI port. 3. Audio equipment connects to the R/L port. 4. The optical cable of Audio equipment connects to the SPDIF port. 5. Plug the 5V 1A DC power adapter. Package Content: 1 x HDMI Converter 1 x USB Power Cable 1 x User Manual
